Simulation Units

Effective and cost-effective learning

In pre-clinical education a learning environment simulating practice-like conditions is a key success factor. Knowing teaching concepts, local practices and infrastructural conditions are seldom the same, Dentsply Sirona offers solutions for simulation units tailored to your individual needs. The use of key components of our treatment centers allows a realistic simulation working environment. Students become familiar with details of subsequent treatment processes in the preclinical semesters and a smooth transition to the clinical semesters is facilitated.

Dentsply Sirona offers you an overall concept tailored to your budget framework. Individual choice of configurations and high quality materials ensure an optimal price-performance ratio.

Simulation Units from Dentsply Sirona

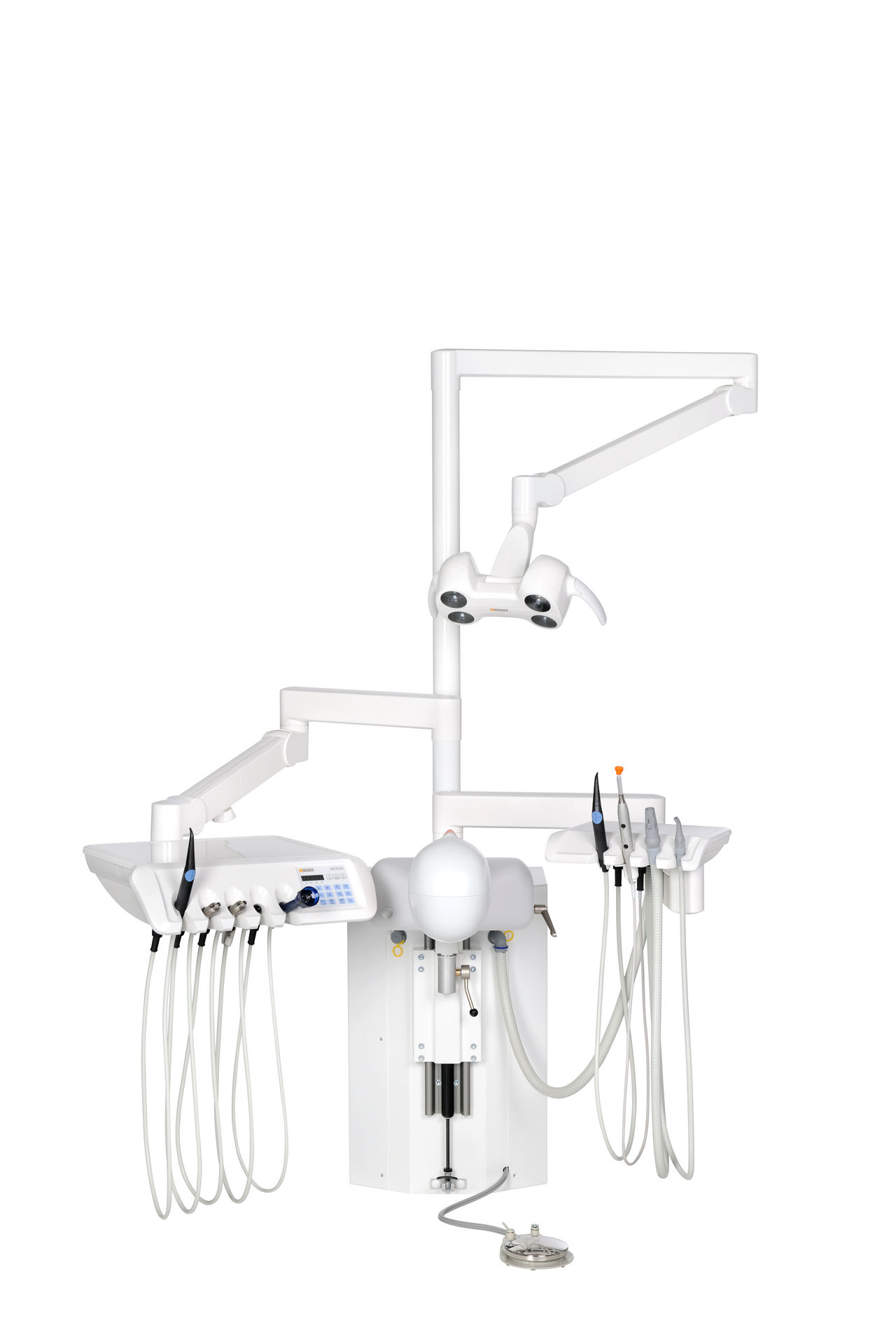

Sim Intego
Sim Multi Bench
Sim Modular

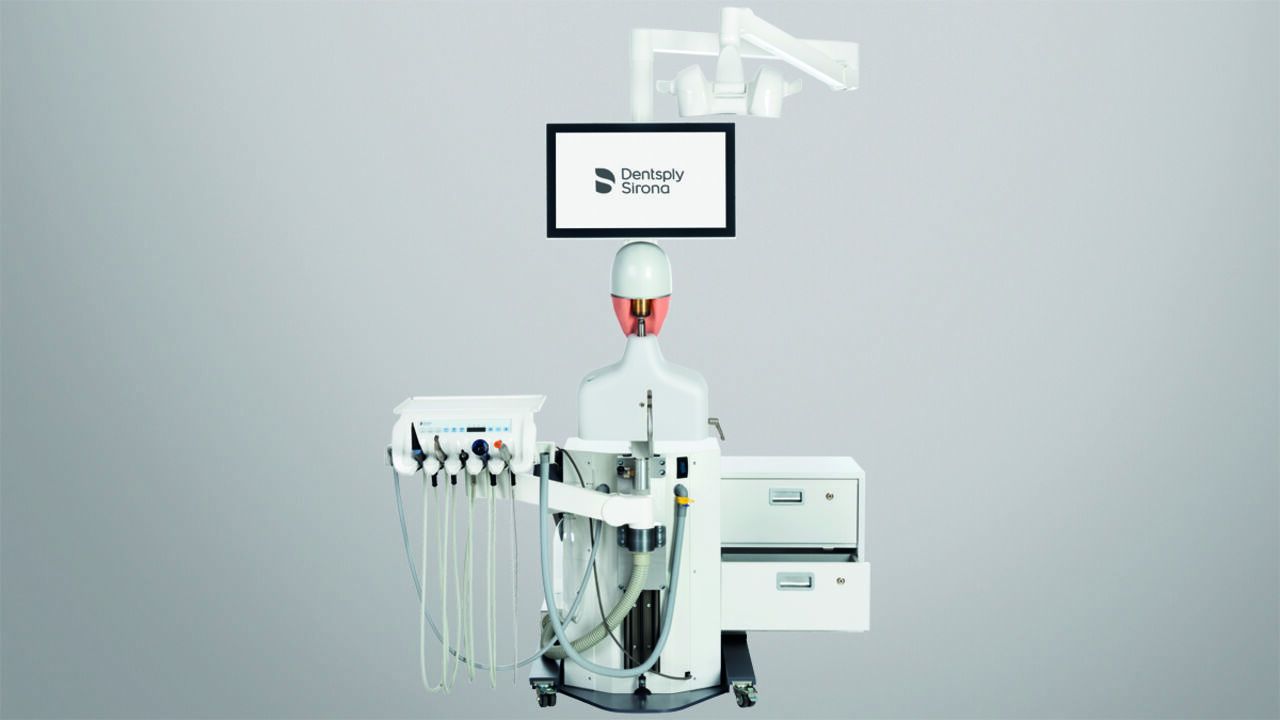

Sim Intego Mobile

Benefits

Why choose our Simulation Units?

Individual custom-made solutions

Future-proof thanks to a range of add-ons

Realistic, hands-on treatment situation

Modular set-up

Cost-effective

Proven components and quality "Made in Germany"

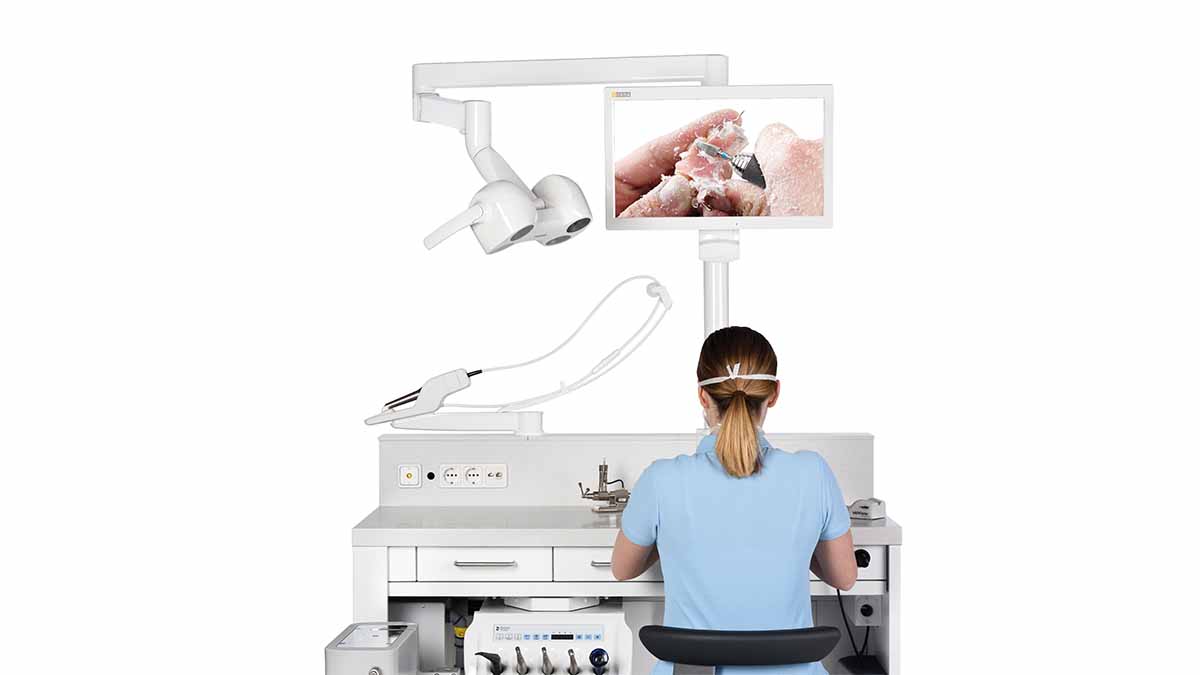

Configuration of simulation units

Teaching should not be any different from circumstances in a dental practice. Based on our long-term expertise and knowledge, we develop simulation units that offer an overall concept tailored to your budget, existing equipment, space, teaching concept and design ideas.

There are almost endless possibilities to configure a simulation unit. Sim Intego and Sim Multibench are examples for two multi-functional solutions that allow a flexible setup to teach every discipline of dental technology.

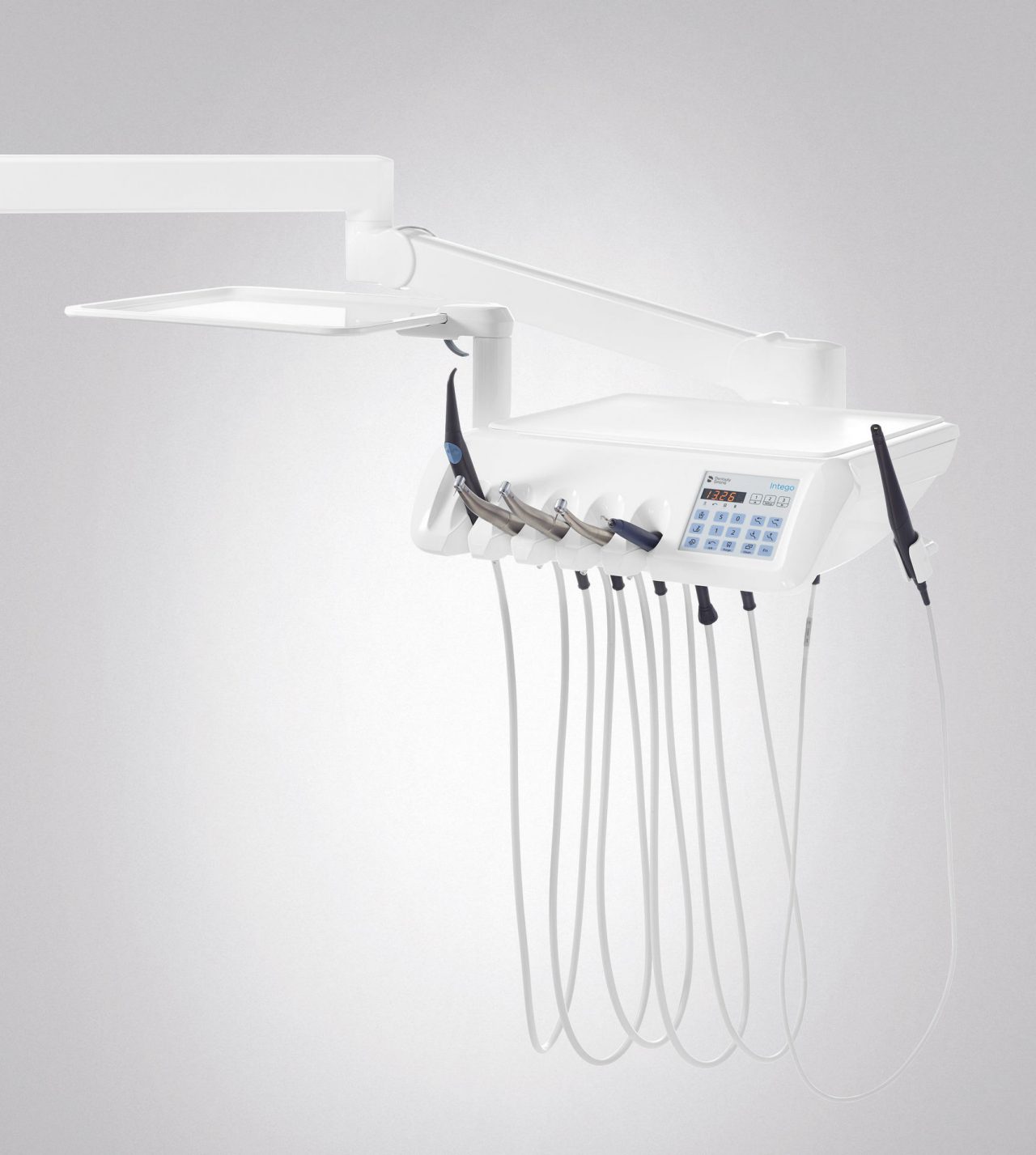

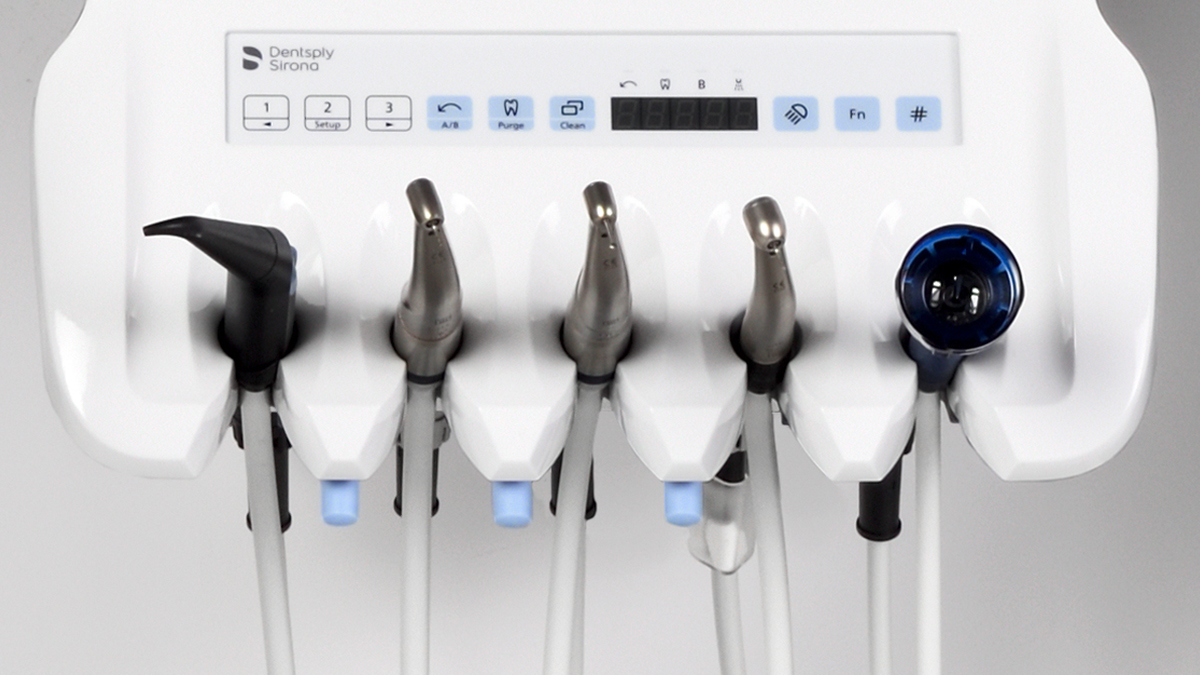

Dentist Element

Our Simulation Units can be equipped with different kinds of dentist elements depending on the required functionalities as well as space conditions.

  • Ergonomic design with flexibly positionable arm
  • Fully fledged with up to 5+1 instruments including high speed and low speed handpieces, scaler and intra-oral camera

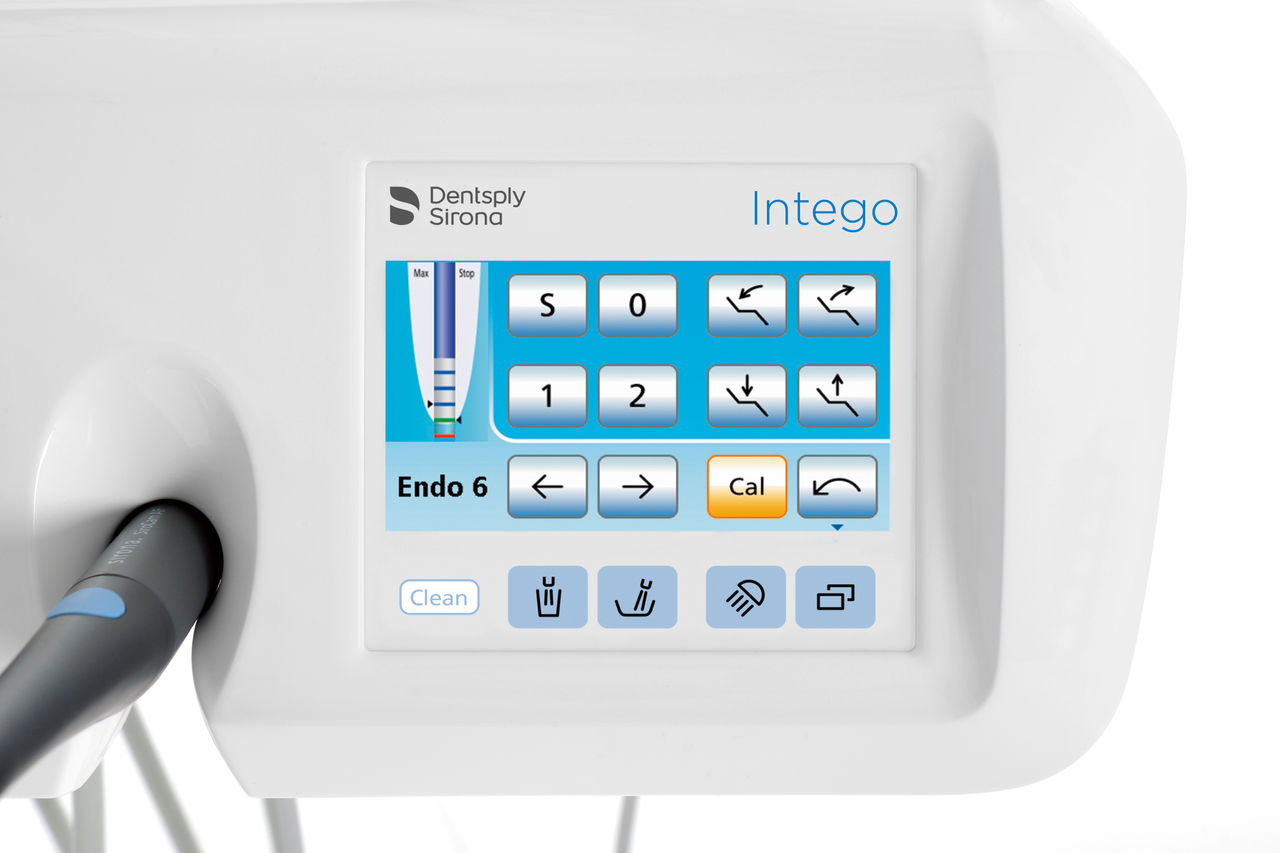

  • With the choice of two different user interfaces: key pad or touchscreen
  • Integrated endo functionality

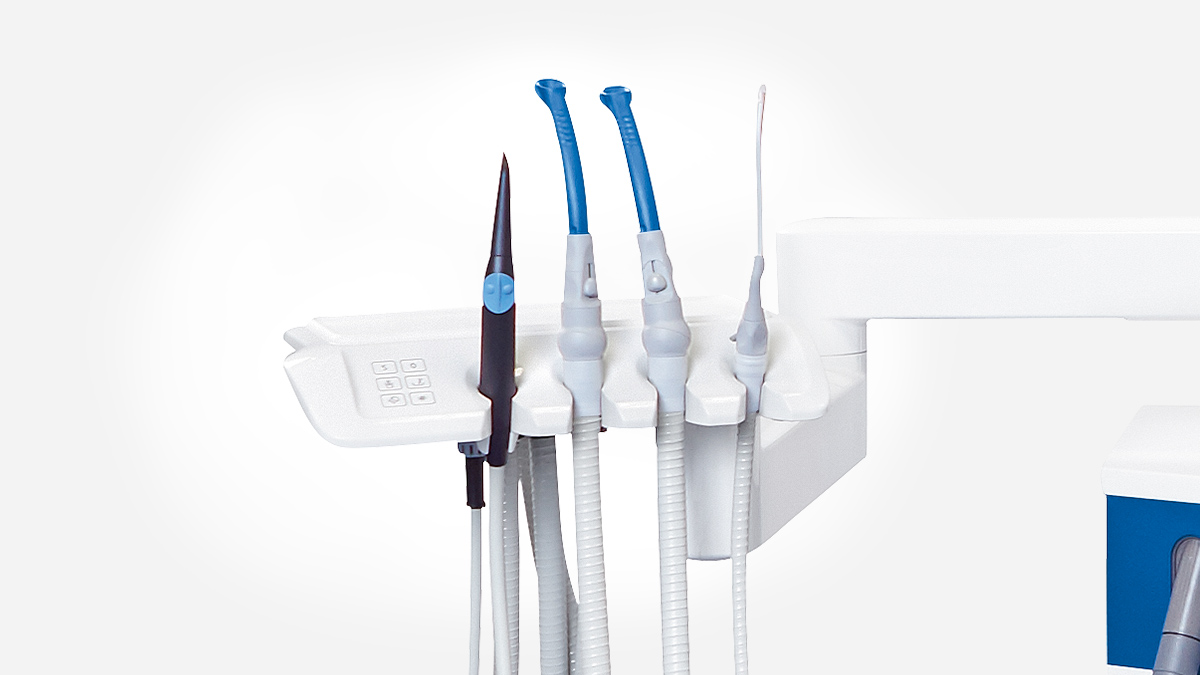

Assistant Element

Our Simulation Units can be equipped with different kinds of assistant elements depending on the required functionalities as well as space conditions.
Choose between:

  • fully-fledged assistant element on separate support arm with up to 4 instrument trays (syringe, LED curing light, HVE, saliva ejector, intraoral camera) and user interface (key pad)

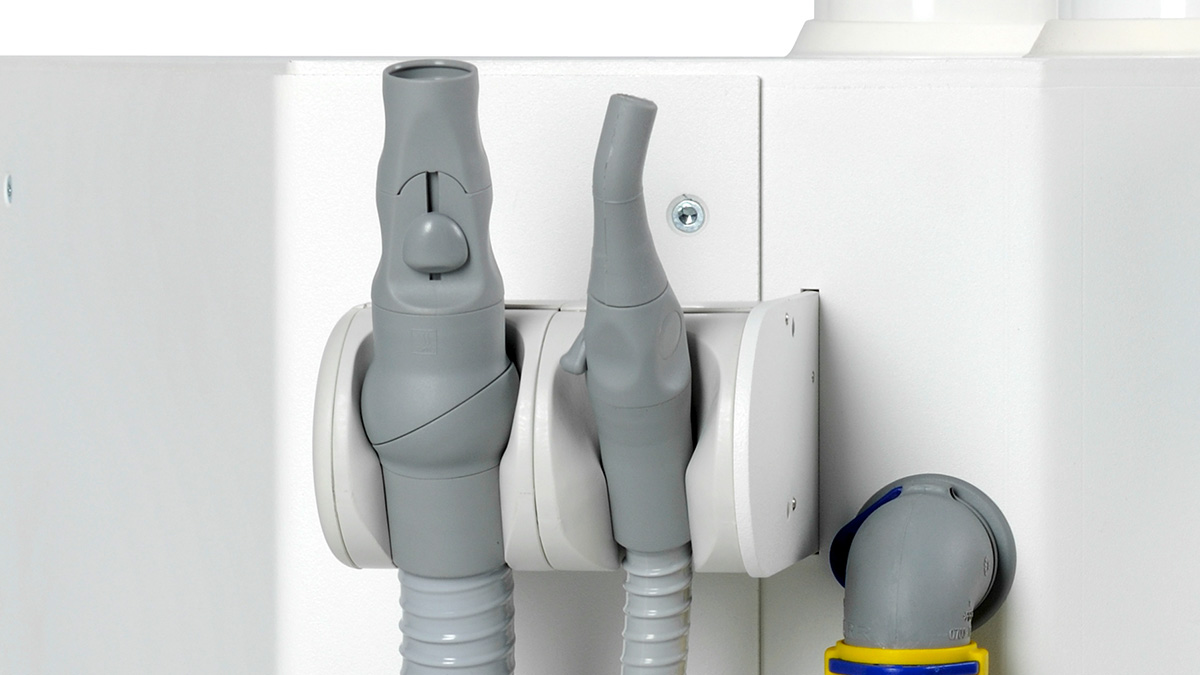

  • Hangers for high volume ejector and/or saliva ejector

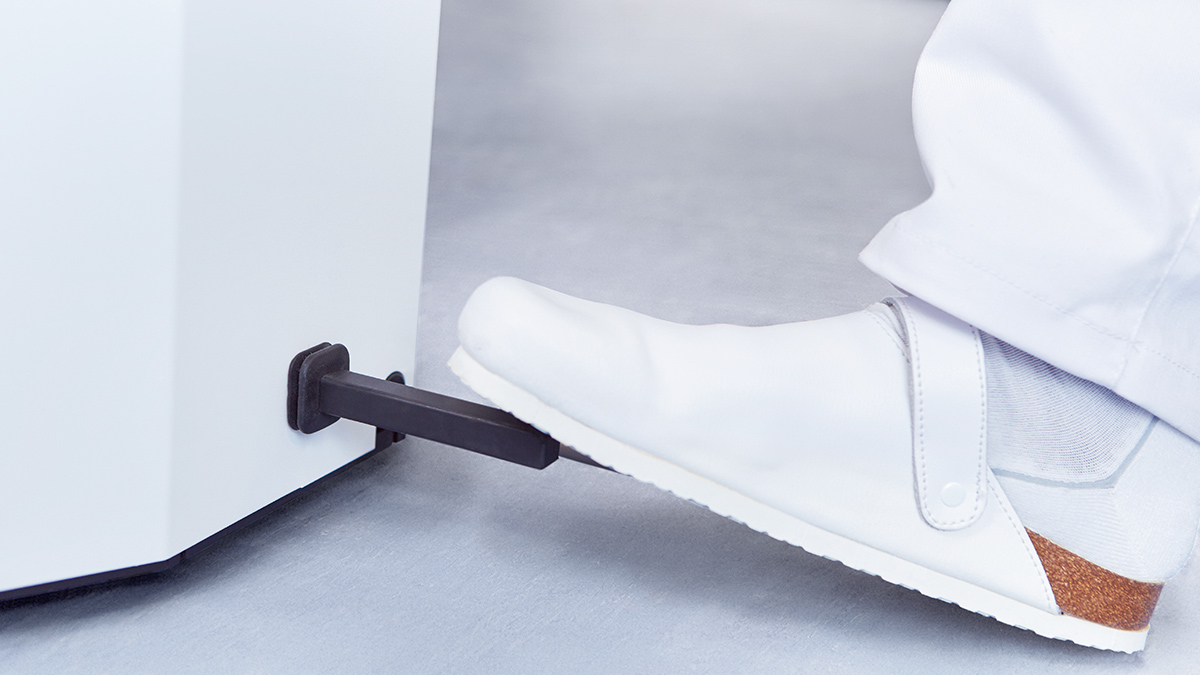

Foot Control

Choose between:

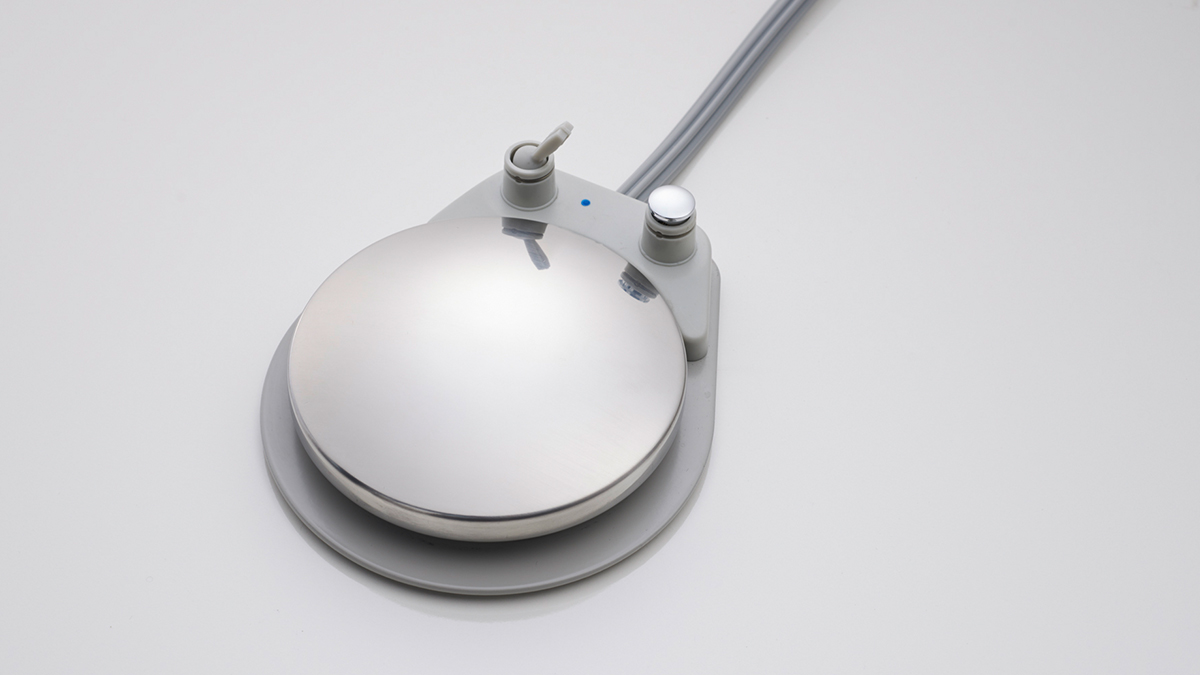

  • Pneumatic foot control: The disc gas pedal starts/stops the instruments.

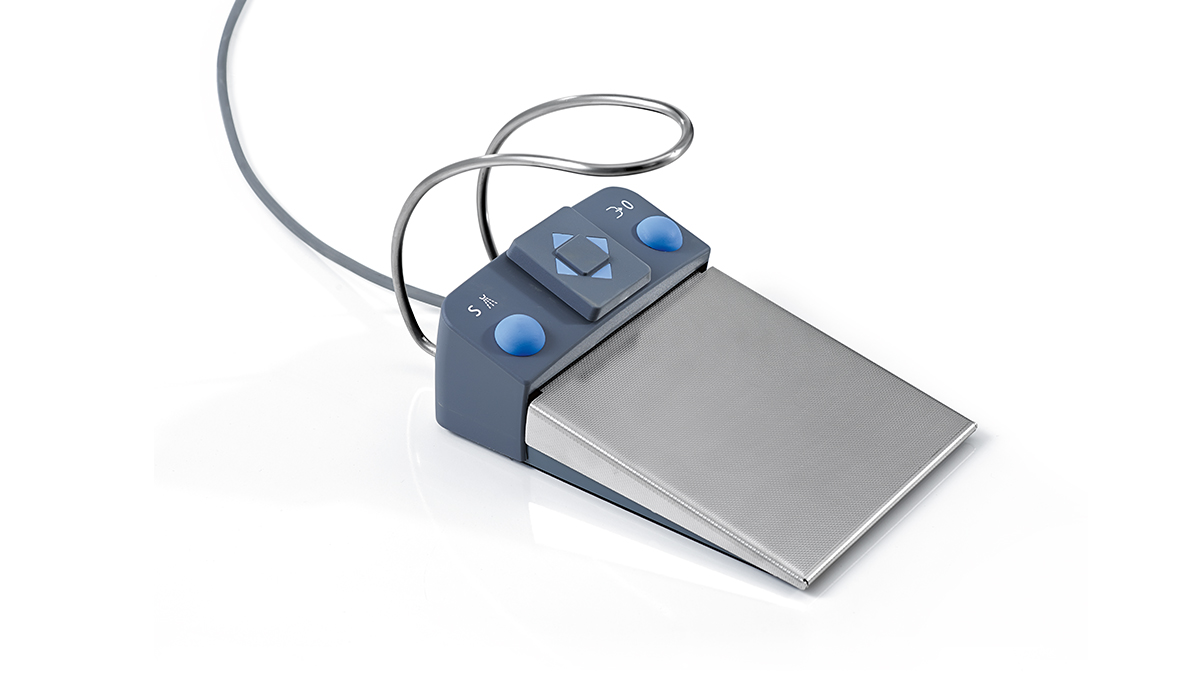

  • Electric foot control: With the electric foot control the speed and intensity of the instruments can additionally be controlled. The height of the patient simulator position can also be adjusted using the foot control.
  • 4-way foot switch: If the height of the patient simulator is adjusted by a motor, it can also be activated by a 4-way foot switch.

All versions are attached to the center of the junction box making it suitable for left and right-handed users.

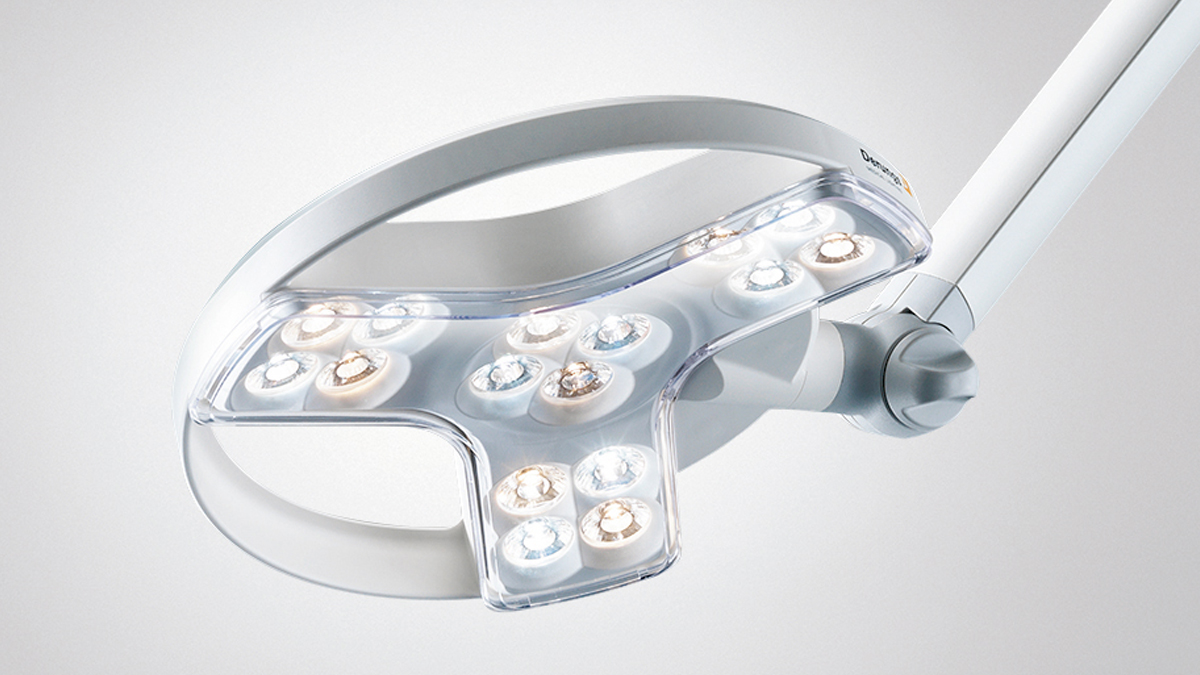

Treatment Lights

Three different models of treatment lights are available to choose from. Both work with LED technology and they are fully-fledged treatment lights like those used in patient treatment. In addition, there is also the option of an exclusive laboratory lamp.

LED view Plus

  • Light intensity: Up to 40,000 lx in 7 steps
  • Color temperature: 4,600 - 6,200 K in 3 steps
  • Composite mode: in accordance with ISO 9680:2014

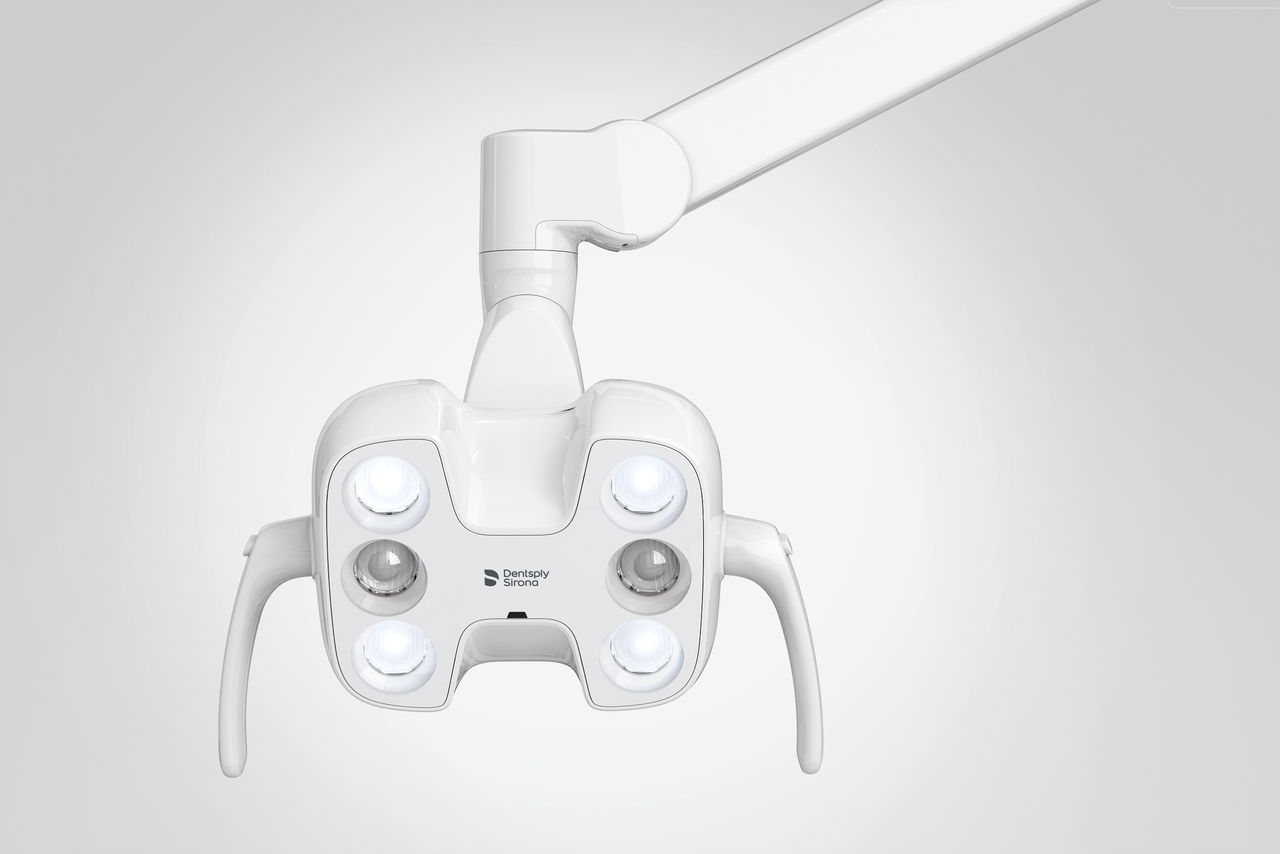

LED light Plus

  • Light intensity: Up to 30,000 intensity lx in 5 steps
  • Color temperature: 5,000 K
  • Composite mode: in accordance with ISO 9680:2014

Laboratory lamp

  • Light intensity: 50,000 lx
  • Color temperature: 4,000 K

Dental Technology

The Simulation Units can be extended with further optional dental add-ons to carry out interdisciplinary courses teaching also prosthetic dentistry:

  • Motor and handpiece for dental technology: Integrated into the Simulation Unit to carry out work in dental technology
  • Dry grinding: The protective disk and dry suction system prevent unhealthy dust from being inhaled

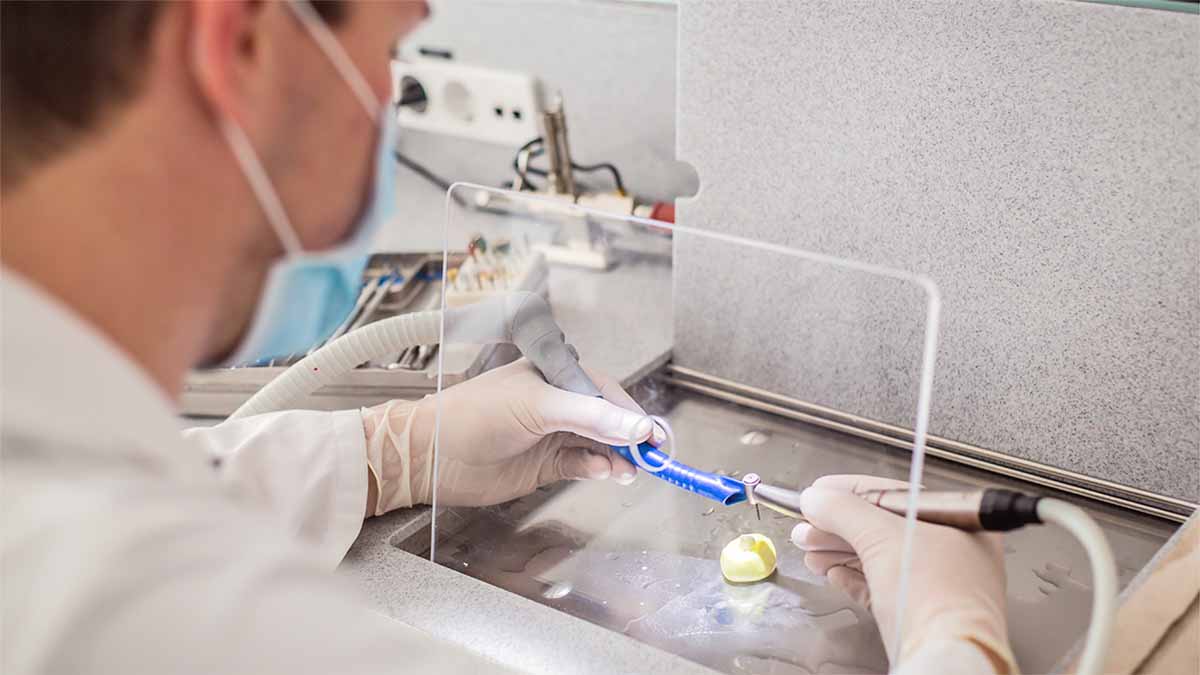

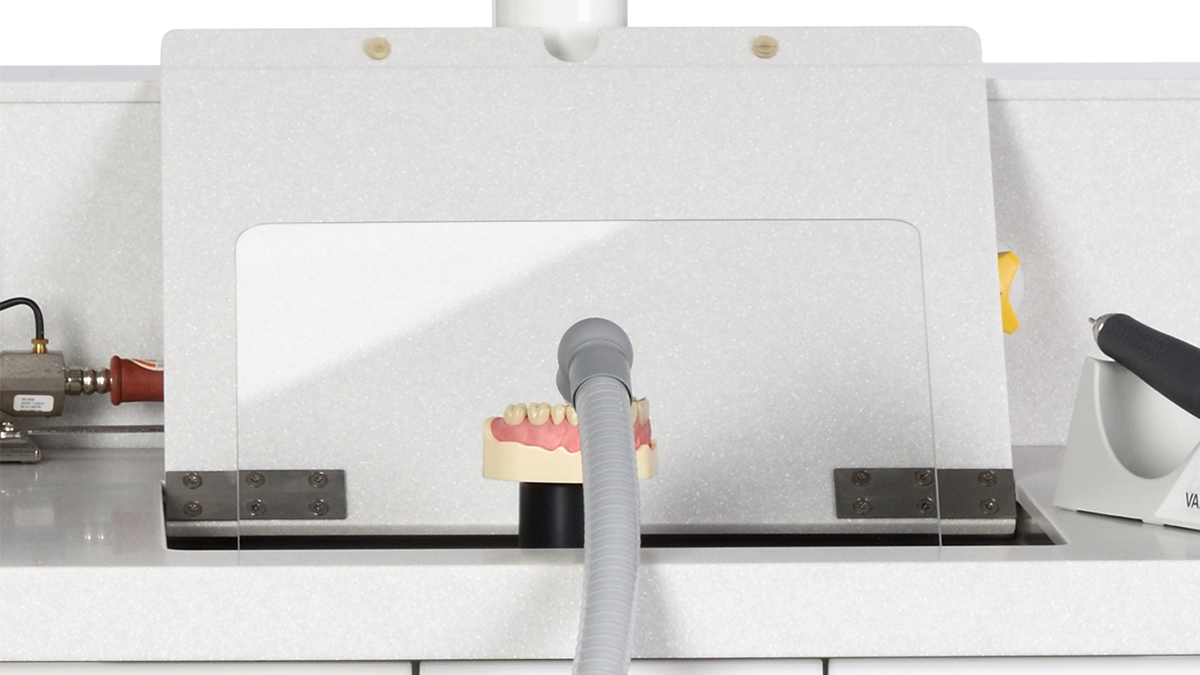

  • Wet grinding: A basin built into the benchtop and a wet suction system allow practitioners to work without a spray mist
  • Bunsen burner/Induction heating unit: For waxing up exercises

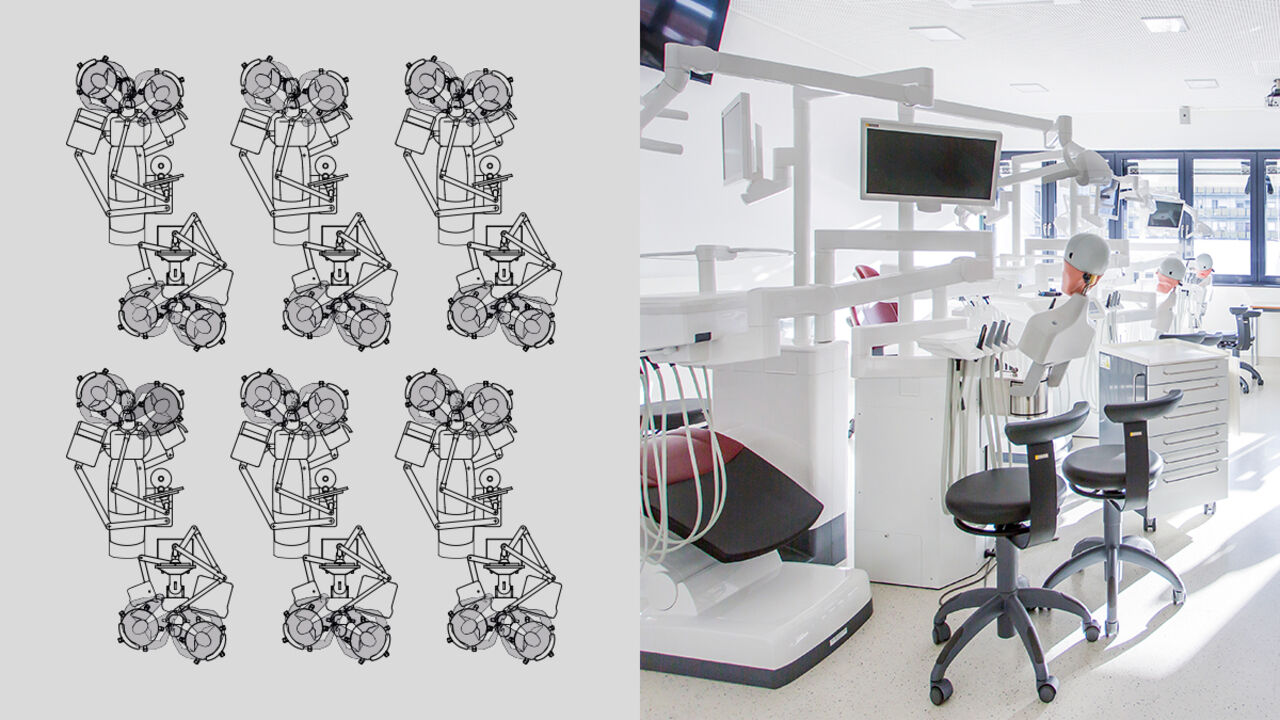

Classroom Layout Options

The Simulation Units can be set up in different layouts depending on the space conditions and the preferred teaching concepts. Possible layouts are:

  • In rows
  • Standalone
  • Double chair
  • Clusters
  • Combination workplace with a treatment center
  • Clusters (star‐shape)

Additional configurable elements

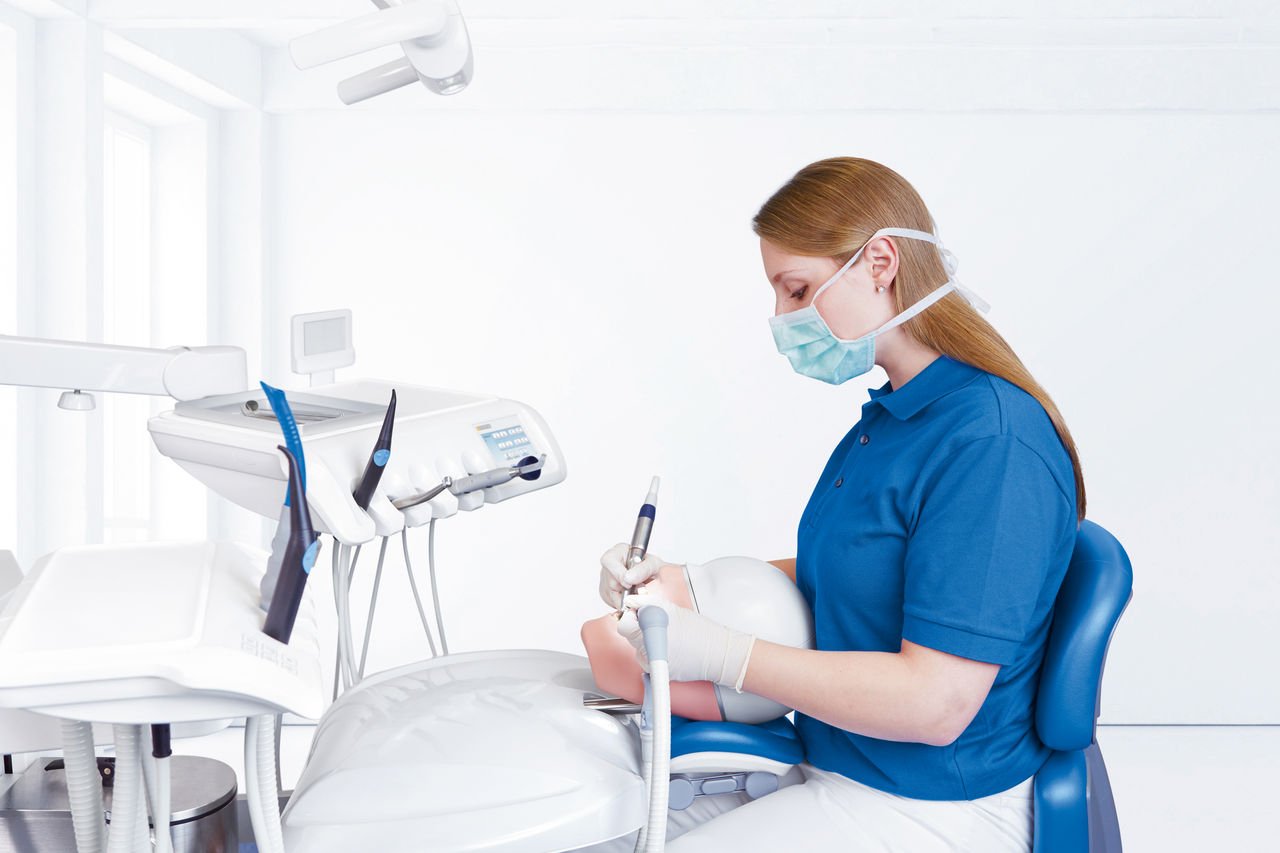

Ambidexterity

In order to provide both left and right-handers ergonomically ideal working and study conditions, our simulation workstations can be switched from right to left or vice versa within seconds.

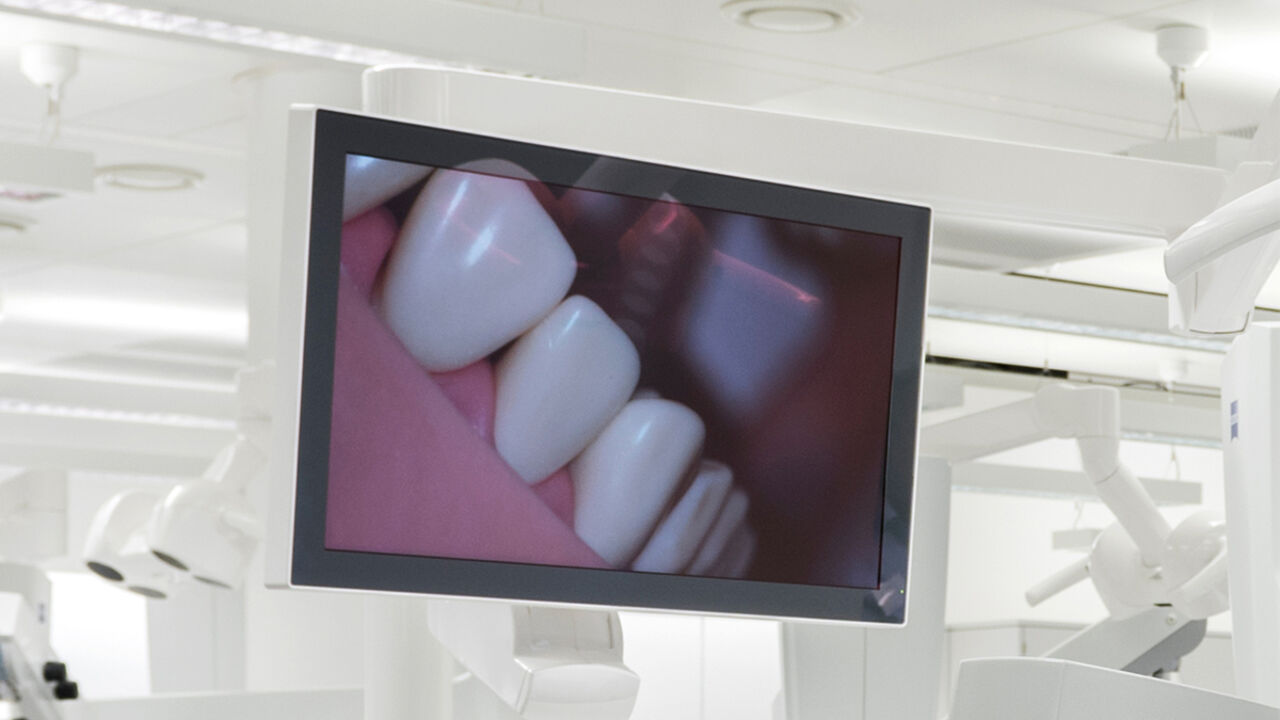

Monitor

A monitor can be integrated into the simulation workstation. If you already have a monitor in place, we can easily provide just the mechanical and media technology VESA interfaces it would need.

Ergonomics

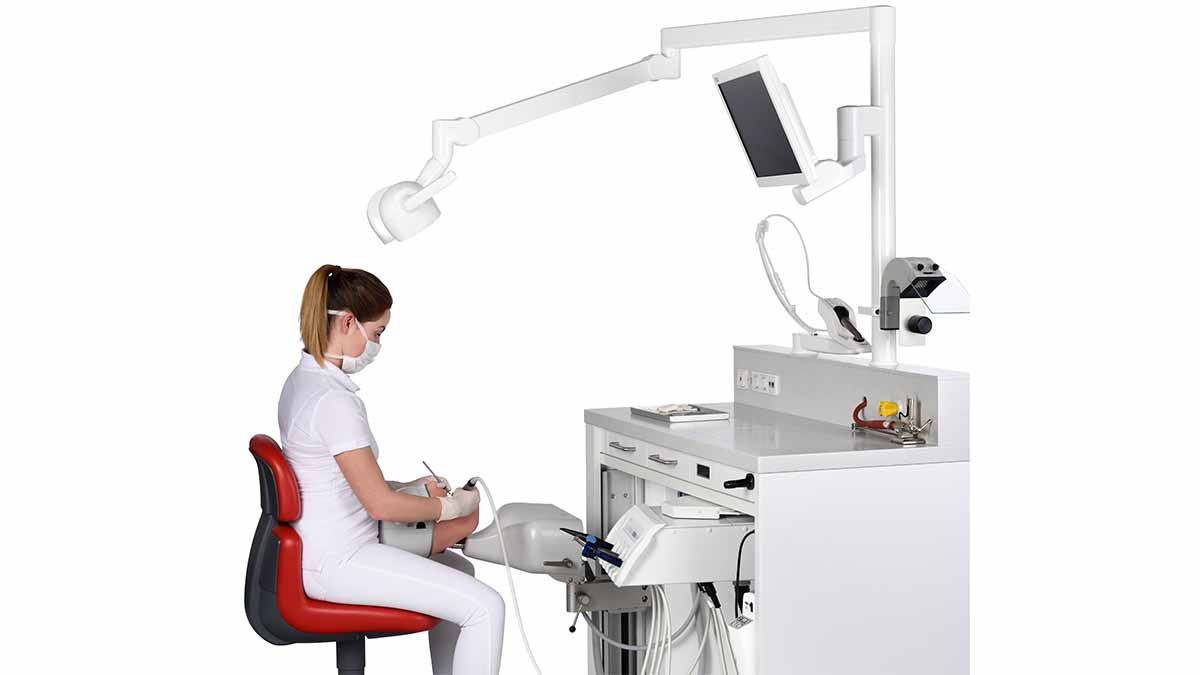

Dentist and assistant elements can be positioned optimally for all treatment situations. The adjustment of height and inclination of the patient simulator guarantees optimal user posture for the user. Additionally, ergonomical working stools support the practitioner in each working position.

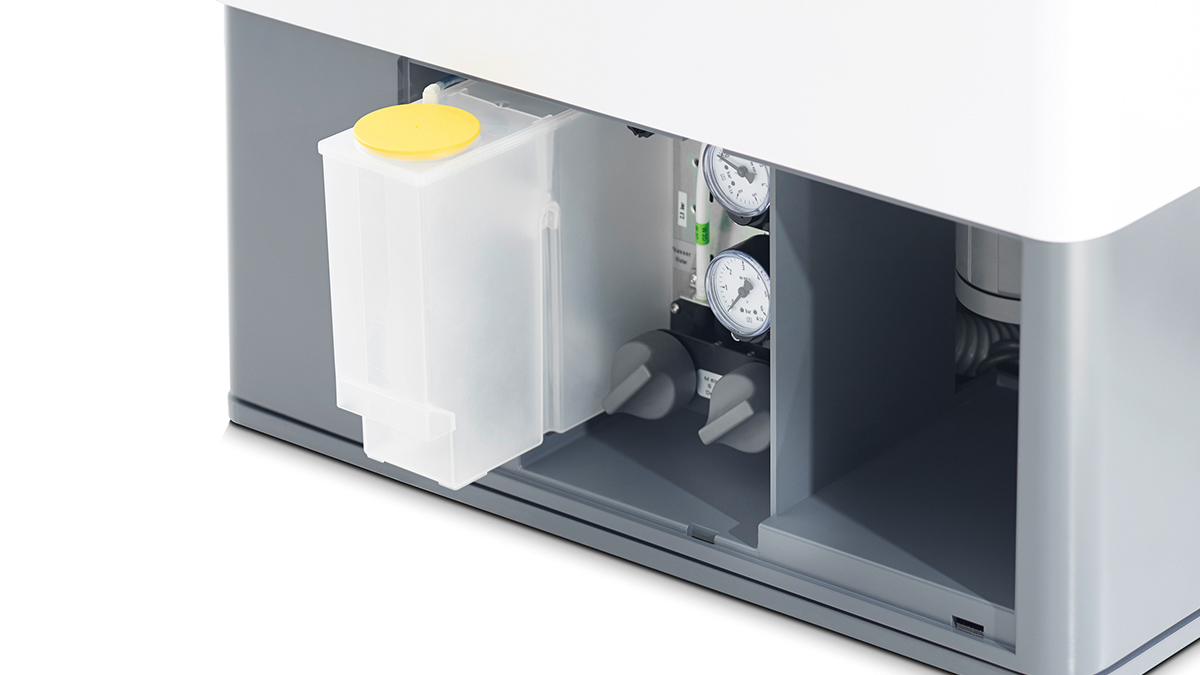

Infection Prevention

The simulation unit can equipped with a holistic hygiene concept, either as an integrated disinfection system, an automatic sanitizing function for regular intensive disinfection, an integrated cleaning adapter, or as chemical suction hose cleaning.

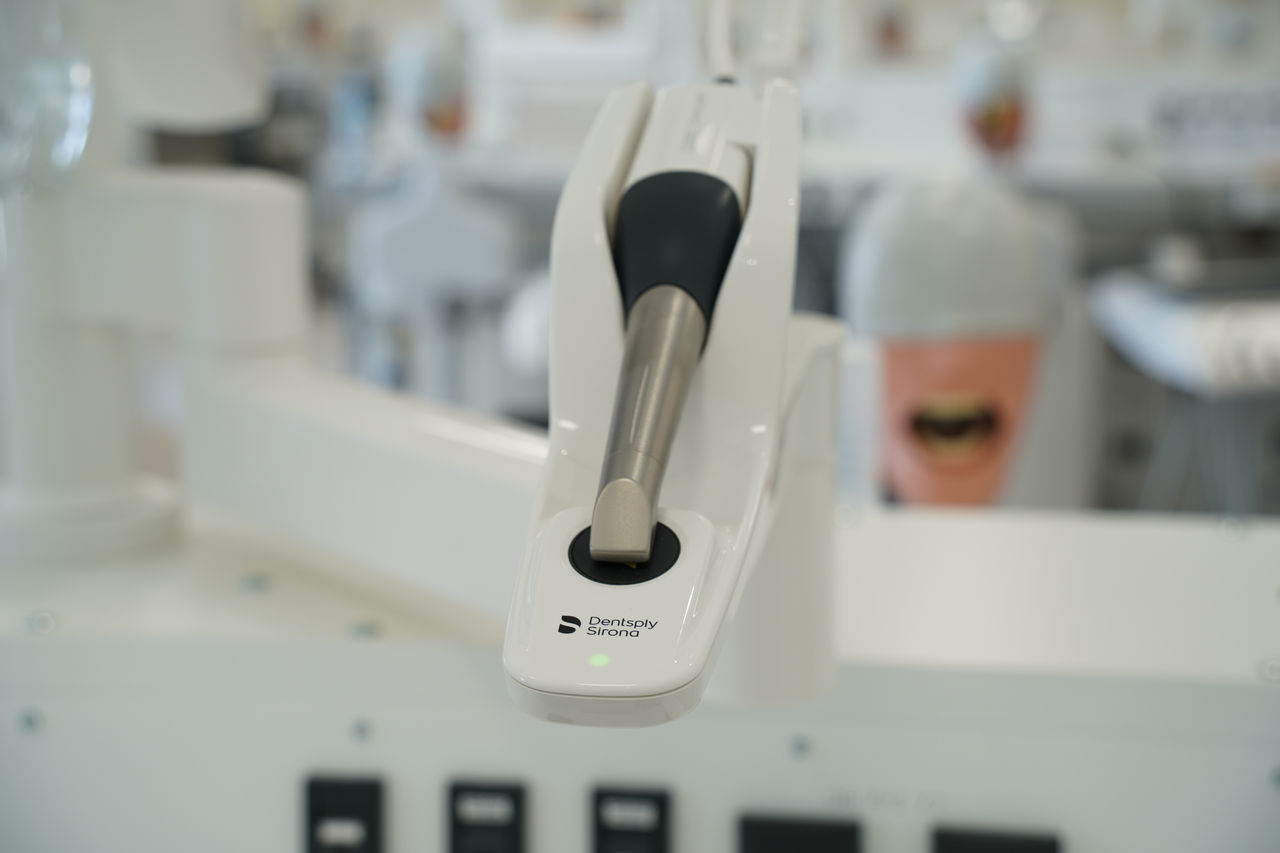

Integration of Intraoral Scanner

The intraoral scanners Primescan and Omnicam can be directly attached to the simulation unit facilitating working with CEREC and prepCheck. Their flexible arms enable students at several adjacent workstations to use the scanner.

Patient Simulator & Dental Models

The intraoral scanners Primescan and Omnicam can be directly attached to the simulation unit facilitating working with CEREC and prepCheck. Their flexible arms enable students at several adjacent workstations to use the scanner.

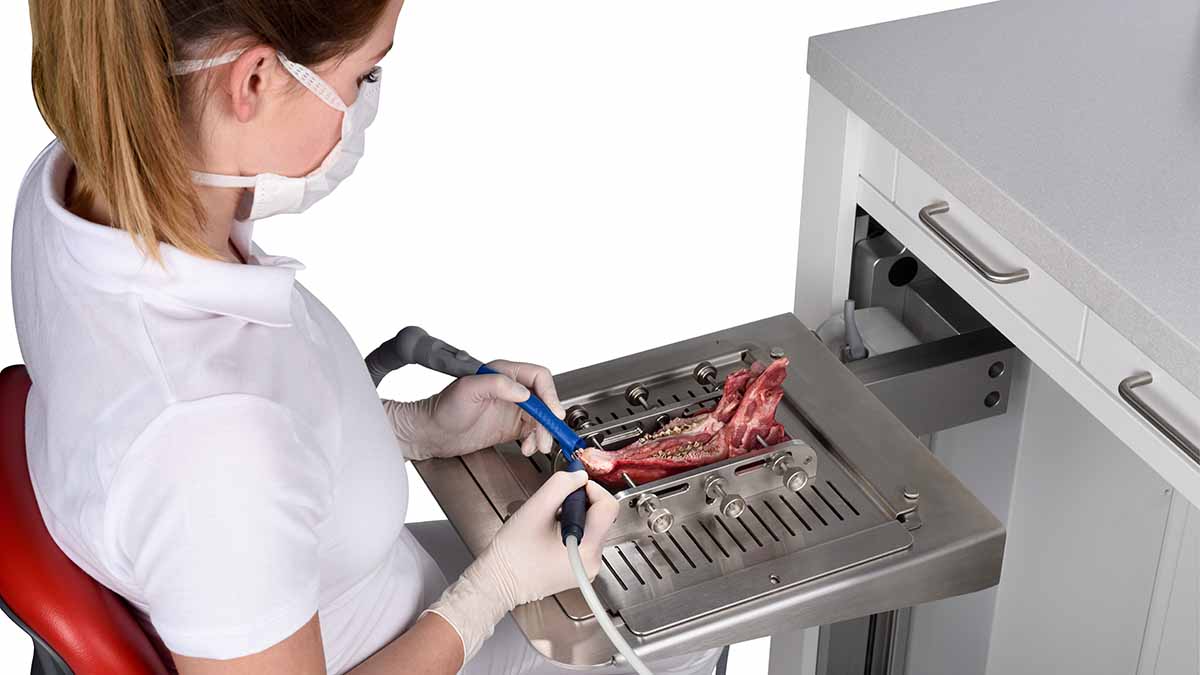

Surgery Tray

For exercises for e.g. surgery or periodontics it is necessary to practice on animals’ jaws. With our Simulation Units you can easily take off the patient phantom and attach a surgery tray. The screws of the surgery tray hold the jaw firmly in position and all excess liquids are collected in the steel tub.

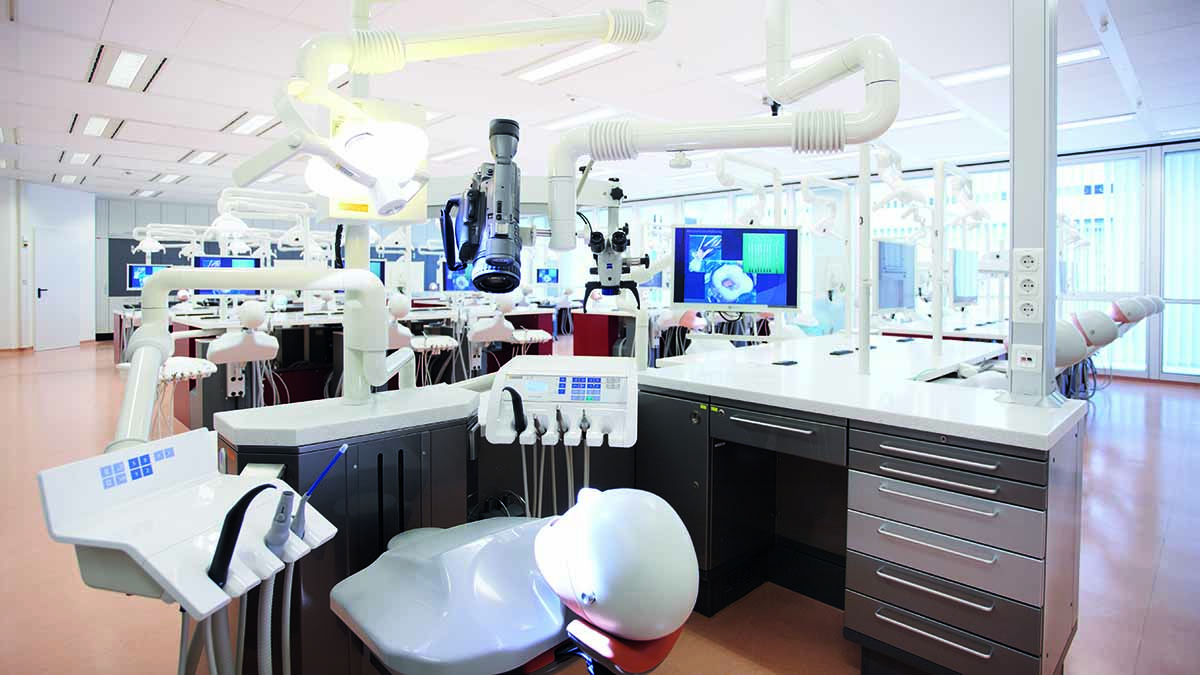

Cabinetry

Dentsply Sirona has strong and successful partnerships with various manufacturers of medical furniture for simulation labs, treatment rooms and sterilizations areas. Together we completed many turn-key projects taking all functional as well as aesthetic factors into account.

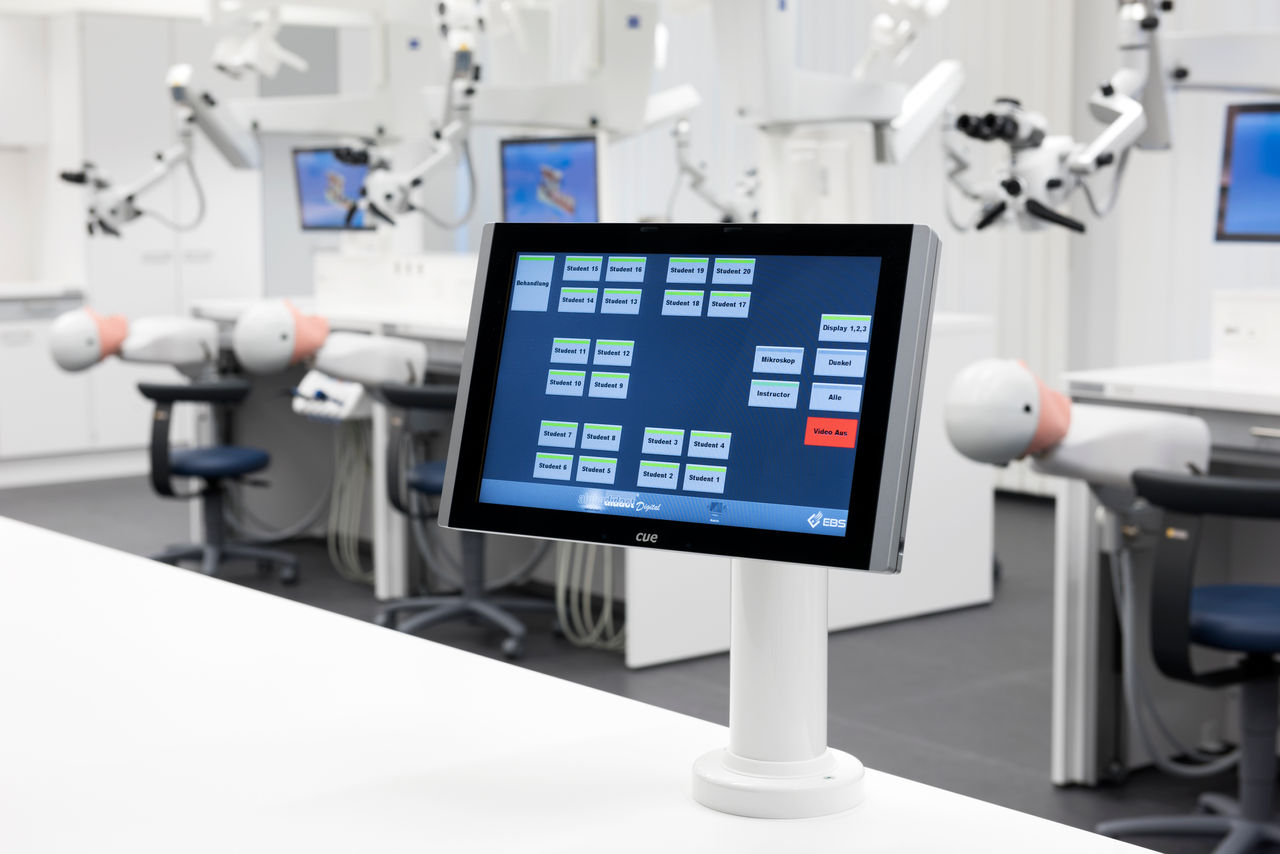

The award-winning alphadidact® digital system allows instructors at the touch of a button to share realtime, high-quality images from any device on any screen in the classroom. This enables the instructor to check up on student progress, share, collaborate and monitor.

Individual solutions Made in Germany

With Dentsply Sirona every simulation unit is customized to fit your functional requirements and spatial conditions as well as your budget. When it comes to designing your individual Simulation Units, we leave nothing to chance. We accompany you step by step during the planning and design process from the initial idea to implementation. You benefit from our international experience in a variety of university projects. For us, "Made in Germany" stands for quality and customer satisfaction.

Downloads

Please find below the most recent Software and document versions. Earlier versions are provided within our Download Center.

3 MB
Sim Intego - Your individual workstation
Download
4 MB
Simulation Workstations: Practical teaching and learning
Download
1 MB
Sim Intego Mobile: Mobilty and flexibility to meet your needs
Download

Related Products

false
prepCheck
Multimedia Collaboration System

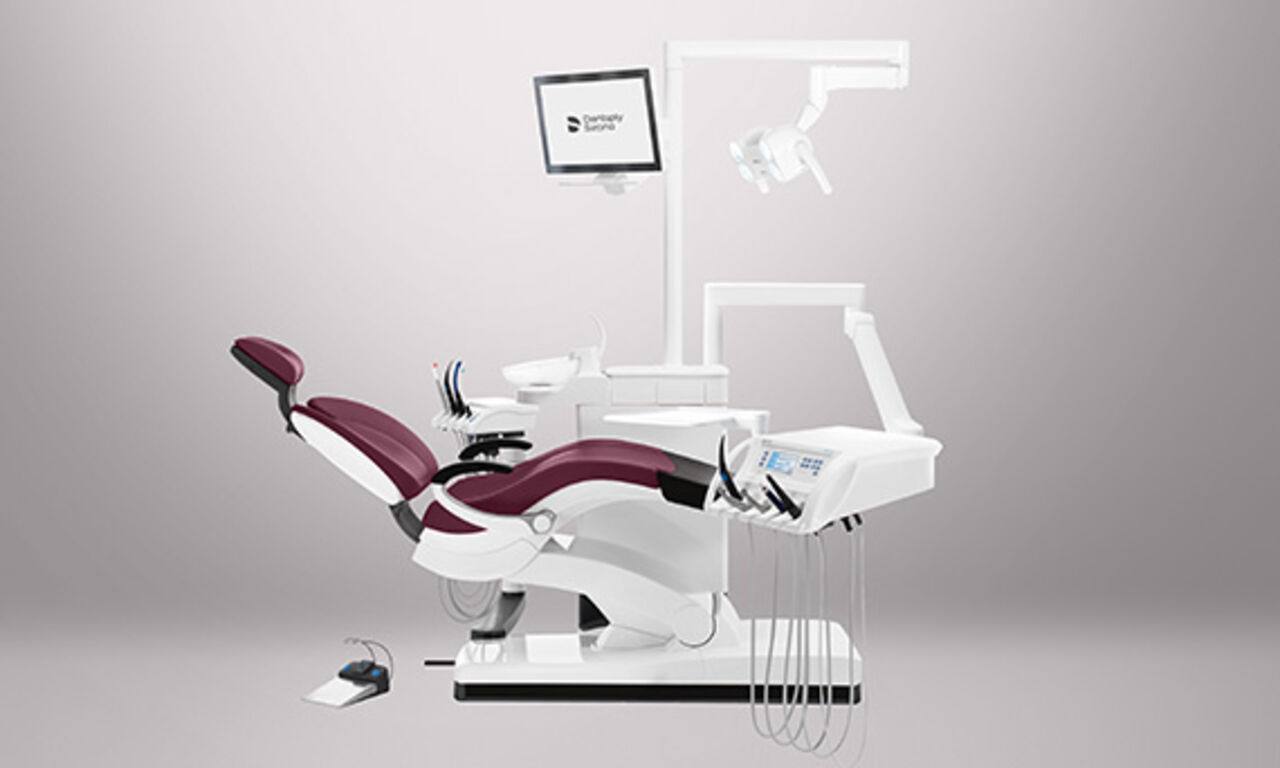

Treatment Centers
